| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | AR99 |
| HTSUS | 8533.40.8070 |
| California Prop 65 Warning Information |
| Product Attribute | Attribute Value |

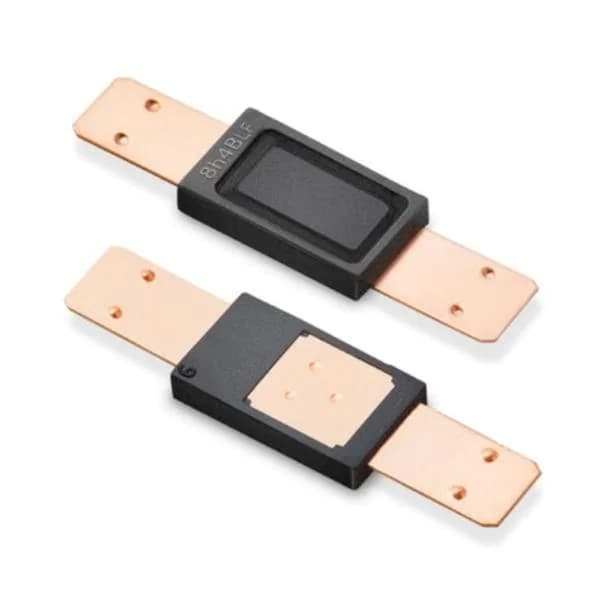

| Manufacturer: | Littelfuse |
| Product Category: | Thermal Cutoffs |
| Contact Rating: | 12 VDC / 25 A, 6000 cycles |
| Rated Temperature: | + 85 C |
| Minimum Holding Voltage: | 3 V |
| Resistance: | 5 mOhms |
| Maximum Breaking Current: | 5 VDC / 80 A, 100 cycles |
| Maximum Leakage Current: | 150 mA |
| Length: | 4.75 mm |
| Width: | 2.8 mm |
| Height: | 0.8 mm |
| Packaging: | Bulk |
| Brand: | Littelfuse |
| Length - in: | 0.19 in |
| Length - mm: | 4.75 mm |
| Maximum Operating Temperature: | + 100 C |
| Minimum Operating Temperature: | - 30 C |
| Product: | Metal Hybrid Protection Breakers |
| Product Type: | Thermal Cutoffs |
| Reset Temperature: | > 40 C |
| Factory Pack Quantity: | 1000 |
| Subcategory: | Thermal Management |
| Width - in: | 0.11 in |
| Width - mm: | 2.8 mm |
| Part # Aliases: | RF4783-000 |
