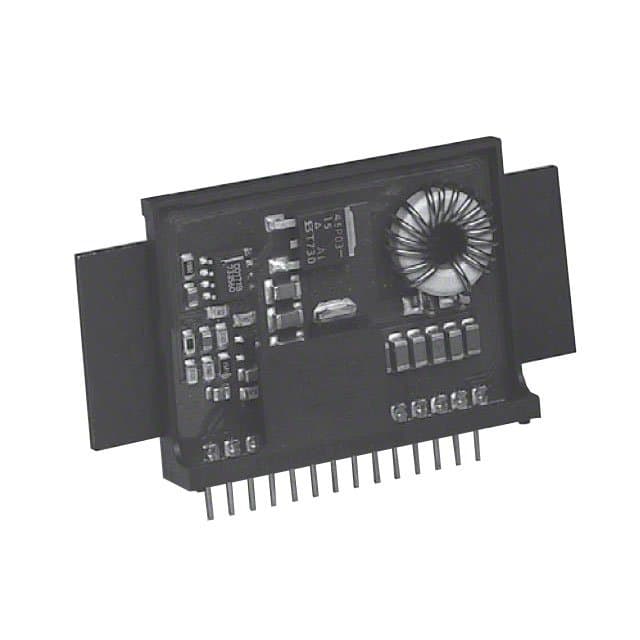

PT4507A
Texas Instruments|DC DC CONVERTER 1.8V 20W
Manufacturer:Texas Instruments
Category:DC DC Converters
Packaging:Standard
Condition:New
Original Packaging:Yes
Note: Lead time, stocks, and price may differ based on the time and availability with supplier.
Pricing & AvailabilityUpdated: Recently
$45.30
for 1+ pcs
Technical Specifications
Not Provided
Documents & Media
Applications & Features
Product Information:
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
Product Description
| Type | DescriptionSelect All |
|---|---|
| Category | Power Supplies - Board MountDC DC Converters |
| Mfr | Texas Instruments |
| Series | Excalibur™ PT4500 (20W) |
| Package | Tray |
| Product Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 40V |
| Voltage - Output 1 | 1.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 20 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 67% |
| Mounting Type | Through Hole, Right Angle |
| Package / Case | 12-SIP Module |
| Size / Dimension | - |
| Base Product Number | PT4507 |
