| Attribute | Description |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
| Product Attribute | Attribute Value |
| Manufacturer: | Vishay |
| Product Category: | MOSFET |
| Technology: | Si |
| Mounting Style: | SMD/SMT |

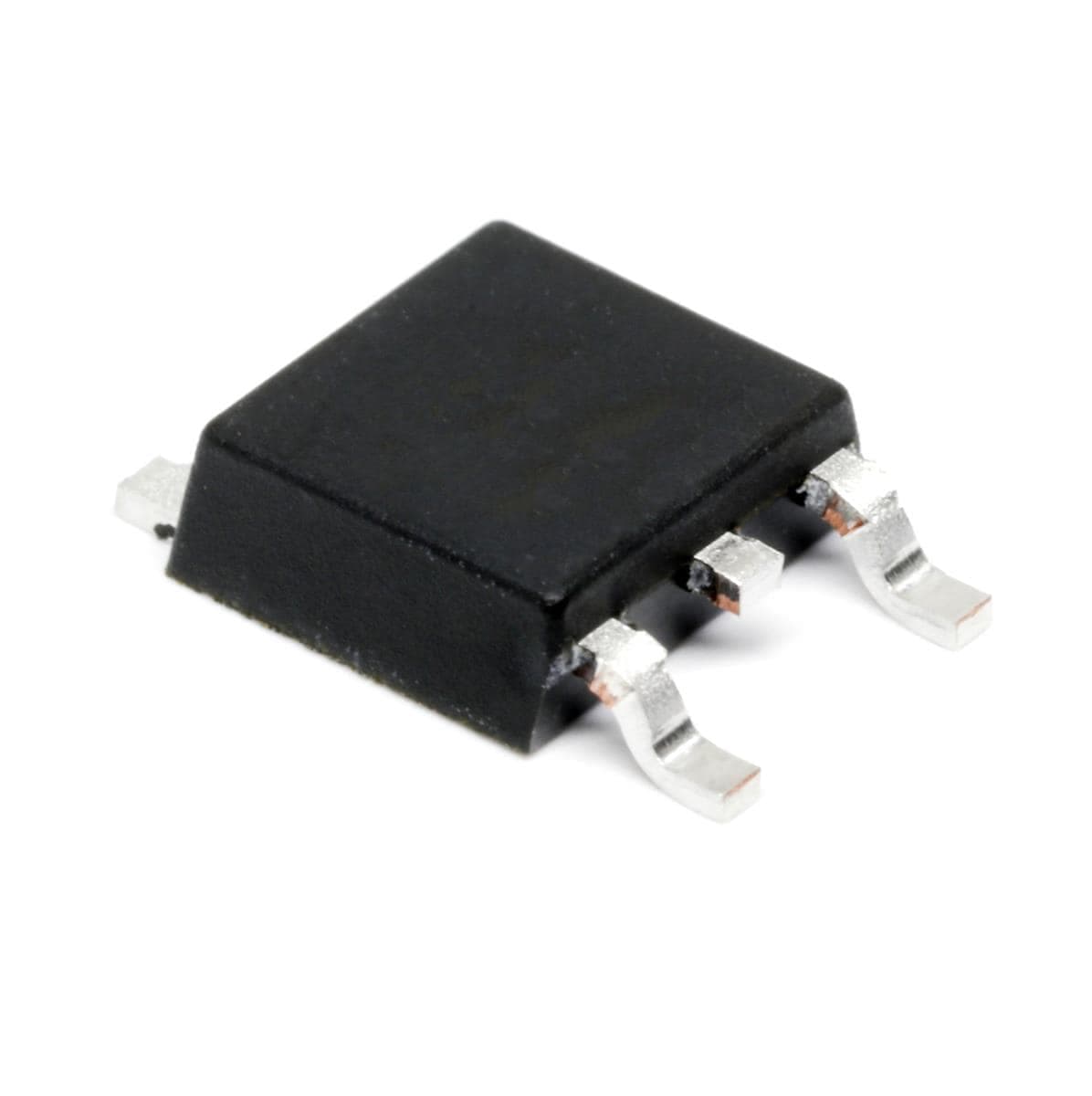

| Package / Case: | TO-252-3 |
| Transistor Polarity: | P-Channel |
| Number of Channels: | 1 Channel |
| Vds - Drain-Source Breakdown Voltage: | 400 V |
| Id - Continuous Drain Current: | 1.8 A |
| Rds On - Drain-Source Resistance: | 7 Ohms |
| Vgs - Gate-Source Voltage: | - 20 V, + 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 4 V |
| Qg - Gate Charge: | 13 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 150 C |
| Pd - Power Dissipation: | 50 W |
| Channel Mode: | Enhancement |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | Vishay / Siliconix |
| Configuration: | Single |
| Fall Time: | 24 ns |
| Product Type: | MOSFET |
| Rise Time: | 10 ns |
| Factory Pack Quantity: | 3000 |
| Subcategory: | MOSFETs |
| Transistor Type: | 1 P-Channel |
| Typical Turn-Off Delay Time: | 25 ns |
| Typical Turn-On Delay Time: | 11 ns |
| Part # Aliases: | IRFR9310TRLPBF |
| Unit Weight: | 0.011640 oz |
