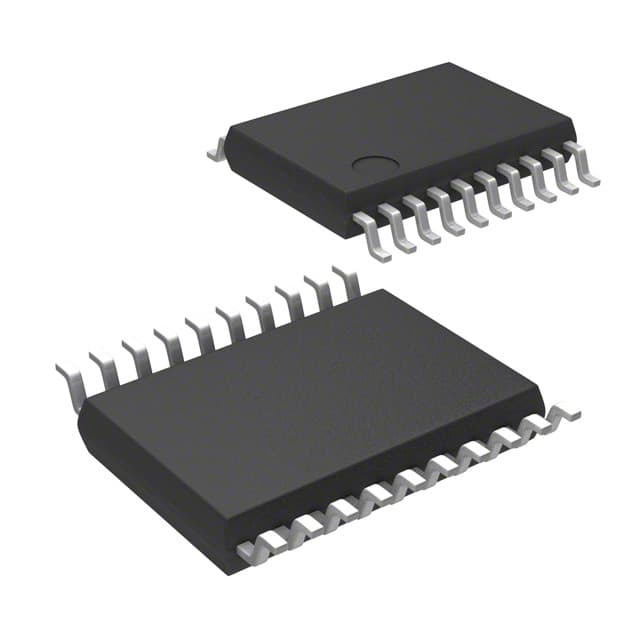

STM8AF6213PCU
STMicroelectronics|IC MCU 8BIT 4KB FLASH 20TSSOP
Manufacturer:STMicroelectronics
Category:Connectors
Packaging:Standard
Condition:New
Original Packaging:Yes
Note: Lead time, stocks, and price may differ based on the time and availability with supplier.
Pricing & AvailabilityUpdated: Recently
$2.25
for 1+ pcs
Technical Specifications
Not Provided
Documents & Media
Applications & Features
Product Information:
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
Product Description
| Type | Description |
|---|---|
| Category | Integrated Circuits (ICs) |
| Embedded | Microcontrollers |
| Mfr | STMicroelectronics |
| Series | Automotive, AEC-Q100, STM8A |
| Product Status | Not For New Designs |
| Matkronics Programmable | Not Verified |
| Core Processor | STM8A |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 640 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 5x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | STM8 |
