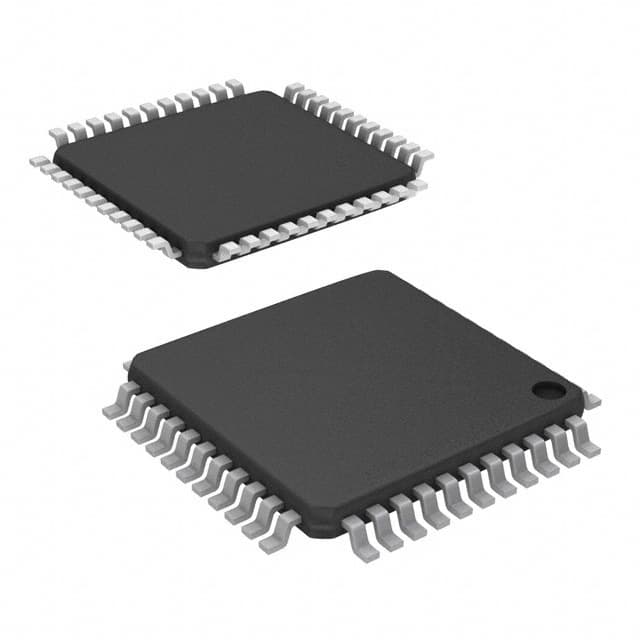

MC9S08PT32VLD
NXP USA Inc.|IC MCU 8BIT 32KB FLASH 44LQFP
Manufacturer:NXP USA Inc.
Category:Connectors
Packaging:Standard
Condition:New
Original Packaging:Yes
Note: Lead time, stocks, and price may differ based on the time and availability with supplier.
Pricing & AvailabilityUpdated: Recently
$4.53
for 1+ pcs
Technical Specifications
Not Provided
Documents & Media
Applications & Features
Product Information:
nan
Product Description
| Type | Description |
|---|---|
| Category | Integrated Circuits (ICs) |
| Embedded | Microcontrollers |
| Mfr | NXP USA Inc. |
| Series | S08 |
| Package | Tray |
| Product Status | Not For New Designs |
| Matkronics Programmable | Not Verified |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 37 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LQFP |
| Supplier Device Package | 44-LQFP (10x10) |
| Base Product Number | MC9S08 |
