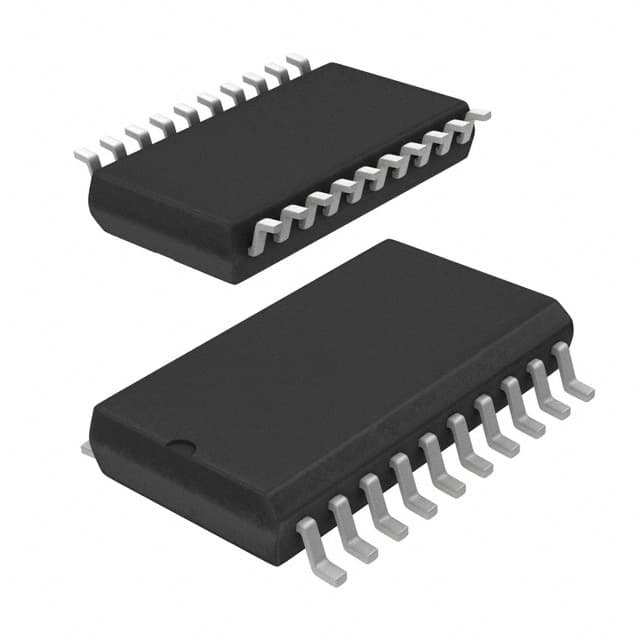

MC908JK1ECDWE
NXP USA Inc.|IC MCU 8BIT 1.5KB FLASH 20SOIC
Manufacturer:NXP USA Inc.
Category:Connectors
Packaging:Standard
Condition:New
Original Packaging:Yes
Note: Lead time, stocks, and price may differ based on the time and availability with supplier.
Pricing & AvailabilityUpdated: Recently
$6.34
for 1+ pcs
Technical Specifications
Not Provided
Documents & Media
Applications & Features
Product Information:
nan
Product Description
| Type | Description |
|---|---|
| Category | Integrated Circuits (ICs) |
| Embedded | Microcontrollers |
| Mfr | NXP USA Inc. |
| Series | HC08 |
| Package | Tube |
| Product Status | Not For New Designs |
| Matkronics Programmable | Not Verified |
| Core Processor | HC08 |
| Core Size | 8-Bit |
| Speed | 8MHz |
| Connectivity | - |
| Peripherals | LED, LVD, POR, PWM |
| Number of I/O | 14 |
| Program Memory Size | 1.5KB (1.5K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.3V |
| Data Converters | A/D 12x8b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | MC908 |
