Note: Lead time, stocks, and price may differ based on the time and availability with supplier.
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
| Type | Description |
|---|---|
| Category | Integrated Circuits (ICs) |
| Embedded | Microcontrollers |
| Mfr | NXP USA Inc. |
| Series | HC05 |
| Package | Tube |
| Product Status | Not For New Designs |
| Matkronics Programmable | Verified |
| Core Processor | HC05 |
| Core Size | 8-Bit |
| Speed | 2.1MHz |
| Connectivity | SIO |
| Peripherals | POR, WDT |
| Number of I/O | 21 |
| Program Memory Size | 4.5KB (4.5K x 8) |
| Program Memory Type | OTP |
| EEPROM Size | - |
| RAM Size | 176 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

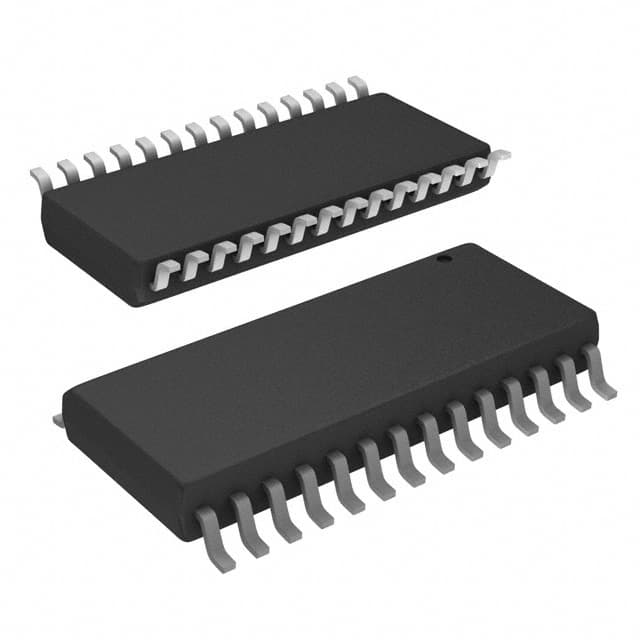

| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Base Product Number | MC705 |
