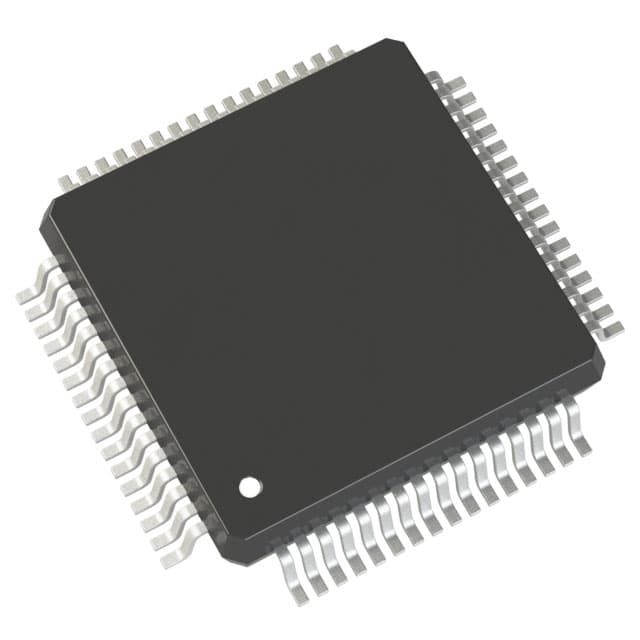

MC56F8323VFBE
NXP USA Inc.|IC MCU 16BIT 32KB FLASH 64LQFP
Manufacturer:NXP USA Inc.
Category:Connectors
Packaging:Standard
Condition:New
Original Packaging:Yes
Note: Lead time, stocks, and price may differ based on the time and availability with supplier.
Pricing & AvailabilityUpdated: Recently
$22.74
for 1+ pcs
Technical Specifications
Not Provided
Documents & Media
Applications & Features
Product Information:
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
Product Description
| Type | Description |
|---|---|
| Category | Integrated Circuits (ICs) |
| Embedded | Microcontrollers |
| Mfr | NXP USA Inc. |
| Series | 56F8xxx |
| Package | Tray |
| Product Status | Not For New Designs |
| Matkronics Programmable | Not Verified |
| Core Processor | 56800E |
| Core Size | 16-Bit |
| Speed | 60MHz |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | POR, PWM, Temp Sensor, WDT |
| Number of I/O | 27 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 3.6V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| Base Product Number | MC56F83 |
