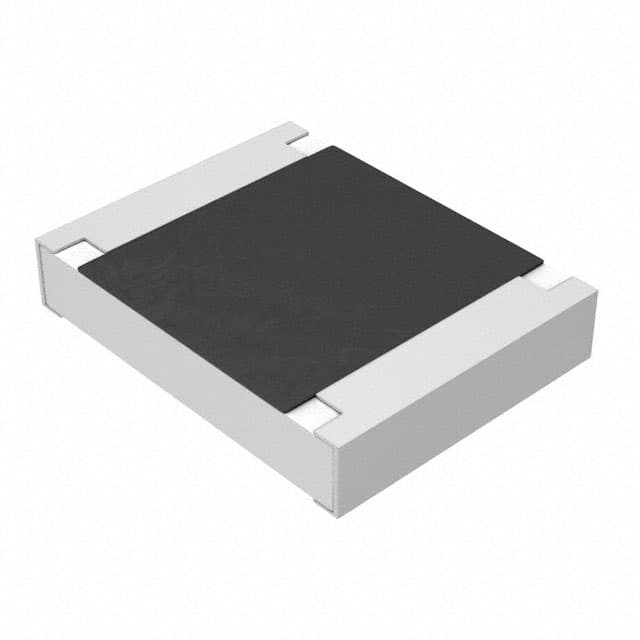

ERJ-14NF1132U
Panasonic Electronic Components|RES SMD 11.3K OHM 1% 1/2W 1210
Manufacturer:Panasonic Electronic Components
Category:Chip Resistor - Surface Mount
Packaging:Standard
Condition:New
Original Packaging:Yes
Note: Lead time, stocks, and price may differ based on the time and availability with supplier.
Pricing & AvailabilityUpdated: Recently
$0.26
for 1+ pcs
Technical Specifications
Not Provided
Documents & Media
Applications & Features
Product Information:
| Attribute | Description |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | AR99 |
| HTSUS | 8533.21.0030 |
Product Description
| Type | Chip Resistor - Surface Mount | |
|---|---|---|
| Description | Panasonic Electronic Components | |
| Category | Resistors | |
| Series | ERJ-14N | |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel�� | |
| Product Status | Not For New Designs | |
| Resistance | 11.3 kOhms | |
| Tolerance | ��1% | |
| Power (Watts) | 0.5W, 1/2W | |
| Composition | Thick Film | |
| Features | Automotive AEC-Q200 | |
| Temperature Coefficient | ��100ppm/��C | |
| Operating Temperature | -55��C ~ 155��C | |
| Package / Case | 1210 (3225 Metric) | 1210 |
| Ratings | AEC-Q200 | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height - Seated (Max) | 0.028" (0.70mm) | |
| Number of Terminations | 2 | |
| Failure Rate-Base Product Number | ERJ-14 |
